Imashini nto yo hanze



Inguvu z'imashini zose hamwe: 15kW - 22kW
Igikoresho co gutunganya: 500-800cm3/h, kinini: 1200cm3/h
Ugutahura neza ingero: H6-H8.
Uburebure bw'umurongo (mm): 1000mm - 20000mm
Uburebure bw'uburebure bw'uburebure (mm): 50mm-400mm









 Gukora vyoroshe kandi bibereye

 Low ibisabwa ku bakoresha
 Igihe gito co gufatanya n'ubushobozi bwo gukora neza





 Igikoresho co hanze gishobora gusa kwongereza ukuri kw'ifomu
 Imashini yo hanze ntishobora guhindura ikibanza
 Ukwibanda ntigushobora gukosorwa





Ubwoko	Uburebure bw'imyobo (mm)	Uburebure bw'uburebure (mm)	INGANO L(mm)	INGANO W(mm)	INGANO H(mm)	Uburemere (ikiro)
UWH-3000	3000	φ50-φ400	5024	870	950	3700
5000	5000	φ50-φ400	81024	870	950	4700
UWH-6000	6000	φ50-φ400	93024	870	950	5200
UWH-8000	8000	φ50-φ400	11540	870	950	6000
10000	10000	φ50-φ400	13540	870	950	6800
12000	12000	φ50-φ400	15540	870	950	7500
15000	15000	φ50-φ400	18540	870	950	9500
16000	16000	φ50-φ400	19540	870	950	10500
18000	18000	φ50-φ400	21540	870	950	13500
20000	20000	φ50-φ400	23540	870	950	15500





Iryo mashini ryo gushaza ryiza cane mu gushaza uruziga rw’inyuma rw’ibikoresho bifise uburebure kuva kuri milimetero 50 gushika kuri milimetero 400 n’uburebure kuva kuri milimetero 1000 gushika kuri milimetero 20000.



• Inzinguzingu yo gutunganya: 500-800 cm³/h (uburebure bushika kuri cm 1200³/h).
• Ugutunganya ingero z'ukuri: h6~h7.
• Ububabare bwo ku ruhande mu gihe co gutunganya: Buke canke bungana na Ra0.4.
• Uburemere bw’igikoresho burengeye hagati y’imbere: 10000 kg.
• Inguvu zose z’igikoresho c’imashini: 22 kW.
• Ubushobozi bwo kwikorera igikoresho c'imashini: 10T

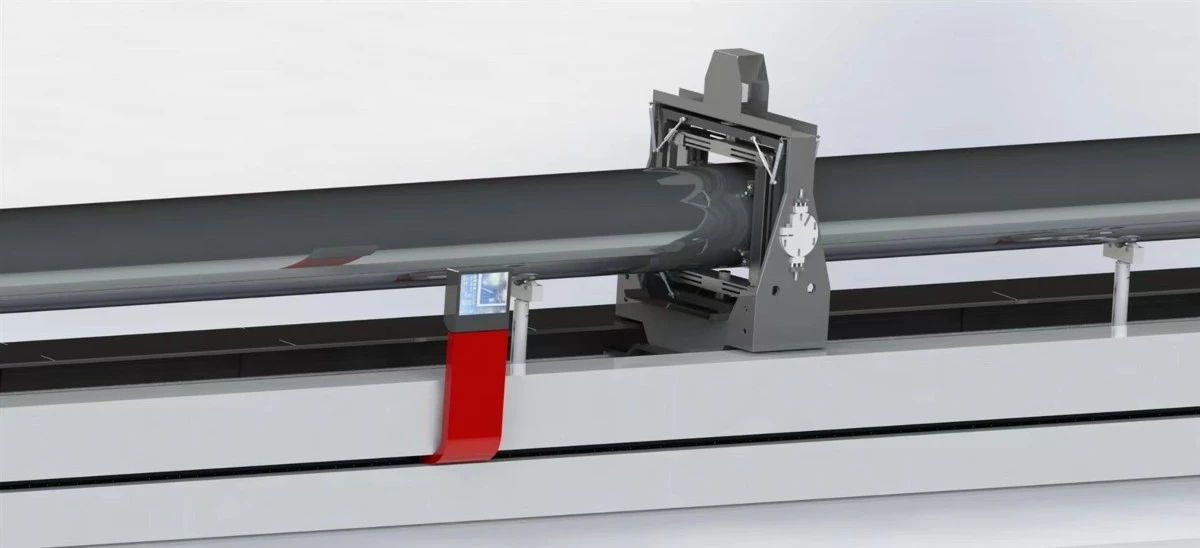

Igishushanyo 1 Imashini yo hanze





Inguvu z’umuyagankuba: 13,5 kW.
Inguvu za moteri y’ibifungurwa: 1 kW.
Inguvu z’imoteri zisubira inyuma: 4,8 kW.
Moteri y'intebe y'infashanyo: 1 kW
Moteri yo guterura ivyicaro bifasha: 2 kW.

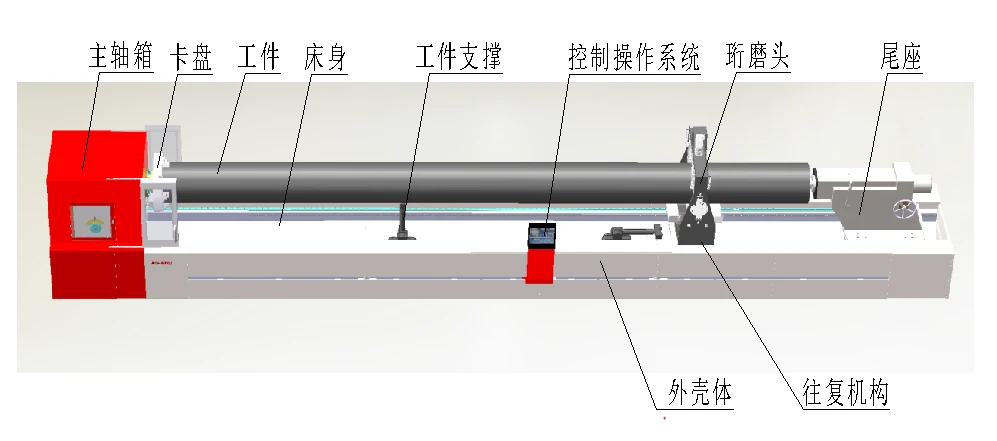

Iryo mashini ryo gutoza rigizwe ahanini n’agasanduku k’ivyuma, umutwe wo gutoza, umubiri w’igitanda, ikintu gifasha igikoresho (ntibikenewe), uburyo bwo guhinduranya, umurizo, uburyo bwo kugenzura, uburyo bwo gukonjesha, n’igipfukisho co hanze.



Igizwe n'imashini yo hanze





Iherezo ry'uruzitiro: GB A2-15.
Igikoresho gica muri-umwobo: 95 mm.
Imbere y'iherezo ry'umwobo w'umurongo: metric 100.
Umuvuduko w’umurongo: 2-umuvuduko ukomeza guhinduka.
Umuvuduko w’umurongo: 39 r/min gushika kuri 330 r/min.
Igitigiri c’amasaya ane: φ 500 mm.
Ipompa y’amavuta yo gutera: 6 L/min.



Kugaragara kw'agasanduku k'umugozi





Umutwe w'ivyuma ufata imiterere y'ibice bitatu-, bishobora gushika ku kureremba kw'inzira nyinshi-; Ivyo guterera mu nzira nyinshi-vy'umutwe w'ivyuma bituma igikoresho gica hagati mu gihe c'ivyuma.

Umutwe wo gutera ivyatsi ugizwe n’uburyo bwo kwicara bukozwe mu mabuye y’amavuta, igihimba c’imbere, igihimba co hagati, igihimba co hanze be n’uburyo bwo gushiramwo uburinganire. Ivyo bifungurwa vy’amabuye y’amavuta bikoreshwa na moteri y’ibifungurwa iri mu gice c’imbere, kandi birungikwa biciye ku gikoresho co kugabanya, ku gice c’inyuma, ku gipfukisho, ku mukanda ukorana, n’uruziga rwo gukorana. Bihita bigaburirwa n'ubugenzuzi bwa porogaramu



Igizwe n'umutwe



Ihuriro hagati y’igiti c’imbere n’igiti co hagati rishingiye ku nkoko zo hejuru n’izo hasi z’igiti c’imbere, uburyo bwo kwizingira no guterera, n’uburyo bwo guteba. Ico gice c’imbere gikomeye gishobora kwizingira no guterera hejuru no hasi no guzunguruka ibubamfu n’iburyo mu gice co hagati, kandi gifise ubuhinga bwo gupima azote kugira ngo kigabanye uburemere bw’ico gice c’imbere n’ibindi bihimba. Hariho uburyo bwo gutwara ivyuma, uburyo bwo kugabanya, na servo motor ku gicapo c’imbere, bishobora gutahura inyigisho y’ibubamfu n’iburyo y’uburyo bwo gutwara intebe y’ibuye ry’amavuta, no gutahura ukugaburira n’ugucika kw’ibuye ry’amavuta.

Aho ubuhinga bwo kwicara bw’amabuye y’amavuta bushirwa burahindurwa bivanye n’aho bukoreshwa. Igishushanyo c’intebe c’ibuye ry’amavuta gihuye n’aho umutwe w’umurongozi uri. Iryo buye ry’amavuta rifatanywa n’uburyo bwo kwicara kw’ibuye ry’amavuta biciye ku gikoresho co gufatanya ibuye ry’amavuta, kikaba gishobora guhindura ningoga kandi mu buryo bworoshe aho ibuye ry’amavuta ryicaye, rigasubirira iryo buye ry’amavuta.



Uburyo bwo kwicara bw'ibuye ry'amavuta





Igikoresho gifasha igikoresho ahanini gifise igikoresho gifasha igikoresho gifise ishusho y’uruzitiro, uburyo bwo gushigikira ukuboko guzunguruka, uburyo bwo guterura, n’ibindi. ibikoresho vy’inylon kugira ngo ntibikoreshe igikoresho.

Ico gikoresho c’imashini gishobora gushirwako ibikoresho bifasha igikoresho kugira ngo igikoresho ntikibe gishobora gukaraba kija hasi.





Ubugororotsi bw'igikoresho co gushigikira





Infashanyo y'igikoresho mu gihe yasenyutse



Igishushanyo c'igikoresho gifasha gutunganya akadiri





Uburyo bwo guhinduranya bugizwe n’iteraniro ry’agasanduku k’ibikoresho bikora, iteraniro ry’agasanduku k’ibikoresho bikoreshwa, isahani y’ugukurura, isahani y’uruzitiro ifatanya, umugwi w’ibifatanya uruzitiro, uruzitiro, uruzitiro rw’uruzitiro, n’ibindi. n’uruzitiro, n’uruzitiro.

Umuvuduko wo gusubira inyuma: 1 m/min gushika kuri 25 m/min



Igishushanyo c'uburyo bwo gusubirana bukorana n'agasanduku k'ivyuma





Igipfukisho c’umurizo gifise igice c’ishimikiro n’igipfukisho c’umurizo, gifise igice co hejuru co gutwara ibintu birenze urugero, n’igipfukisho c’umurizo c’amaboko c’iminota 280.

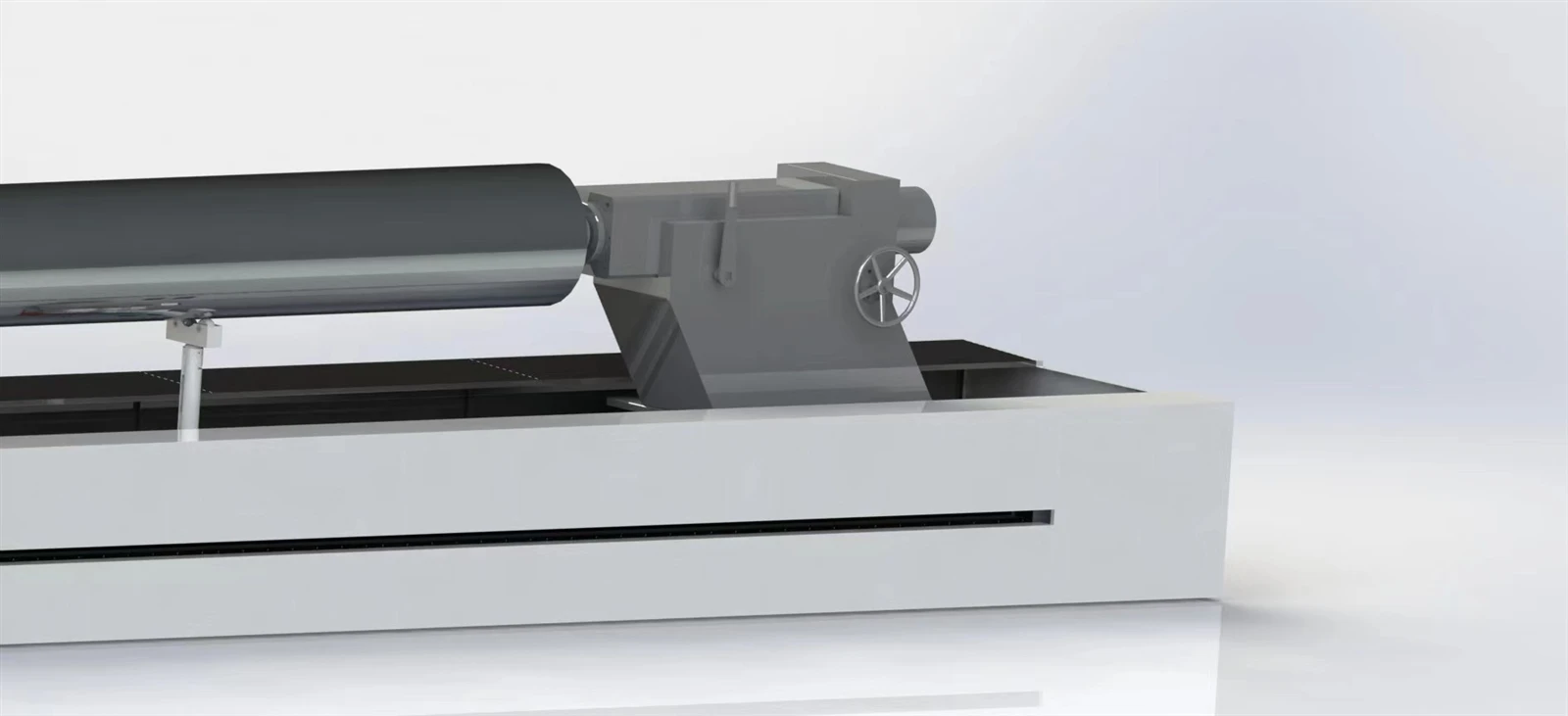

Igishushanyo c'umurizo





Ico gikoresho c’imashini gikoresha uburyo bwo kugenzura mudasobwa y’inganda bushitse, gifise igicapo gikora ku mubiri c’amasentimetero 15 kugira ngo gikore, gikoreshwa neza, gifise ubushobozi bwo gutanga amakuru menshi, kandi gifise ubuhinga bworoshe kandi bubereye.

Igihe nyaco Ikusanya amakuru, igihe nyaco-ibisubizo, no guhindura imirongo y'imigenderanire igihe ukora. Super strong processing parameter dynamic database, umukoresha akeneye gusa kwinjiza umurongo w’inyuma w’igikoresho, kandi igikoresho c’imashini kigatanga umuvuduko uhuye n’umurongo, umuvuduko w’agasanduku k’umurongo, igipimo c’umuzigo munini, umuvuduko munini w’uburinzi n’ibindi bimenyetso. Kugabanya umuzigo w’ibikorwa vy’abakoresha no gukingira neza ibikorwa vy’amakosa.

Uburyo bwo kugenzura ifunguro ry’amabuye y’amavuta burashobora kubona uturongo two hejuru n’utwo hasi, hamwe n’uruzitiro rw’inyuma rw’igikoresho mu gihe nyaco-mu gihe co gukora, maze kikavyerekana mu gihe nyaco-ku gicapo c’iyerekanwa mu buryo bw’igishushanyo. Ku bibanza vy’imbere n’ivy’inyuma vyavumbuwe, gukoresha amaboko ntibisabwa, kandi igikoresho c’imashini kizokora ibikorwa vyo gusanasana mu buryo bugufi ku bibanza vy’imbere vy’imbere ubwavyo; Iyo umurongo w’ugutunganya wegereye umurongo ugororotse, uburemere bw’uruziga rw’inyuma burahuye cane. Ifasha kandi gusanura inzira ngufi n’amaboko, n’incuro n’uburemere bw’inzira ngufi bishobora guhindurwa. Porogarama yo gupima kuri interineti no gukosora ubwayo ku bijanye n’ugutunganya umuzigo irashobora gushika ku kugenzura ubwayo kw’ugukosora kw’aho hantu.

Ico gikoresho gishobora gukora ku mubiri gishobora gushiramwo bitagoranye ubunini bw’ico gikoresho maze kigaharura umuvuduko ukwiye w’ico gikoresho. Igikoresho co gukorako gishobora kandi kwerekana igihe nyaco -igikoresho c'imashini gikora: umuzigo w'umurongo, uturongo two hejuru n'ututo tw'uruziga rw'inyuma rw'igikoresho, ikibanza c'umutwe wo gukorako, igihe co gukorako, igipimo c'ugufungura, urugero rw'ububasha, n'ibindi. Ivyo bikoresho birafise ubuhinga bwo gusanura ibihimba vy’umubiri. Amaze kumenya aho umurongo w’inyuma w’igikoresho ari munini cane, igikoresho co gusanura gishobora gufungurwa kugira ngo gikore igikoresho co gusanura c’igihe gito-kuri aho hantu.



Ikigaragara ca mudasobwa y'umuntu





Uburyo bwo gukonjesha bufise igikoresho co kuyungurura gifise inzira zitatu-gifise ipompo y’amavuta, igikoresho co gutandukanya amavuta, igikoresho co kuyungurura c’impapuro, n’igikoresho co kuyungurura. Amavuta yo gusukura abanza guca mu gikoresho gitandukanya ivyuma, gishobora gukuraho ubwaco igice kinini c’ivu ry’ivu ry’icuma kiri mu mavuta yo gusukura, hanyuma kigaca mu gicuncuro c’urudodo rw’impapuro, aho rero igice kinini c’ifu y’icuma n’ifu y’amabuye y’amavuta biri mu mavuta yo gusukura biba vyakuweho. Ubwa nyuma, amazi akoreshwa mu gukonjesha azunguruka ashikirizwa igikoresho biciye ku kiyunguruzo c’itangi ry’amavuta, ku pompe y’amavuta no ku muyoboro. Igitigiri c’amavuta yo gukonjesha gishobora guhindurwa bivanye n’ingene ivyo bikoresho vyifashe, kandi igikoresho co gukonjesha kiri ku rundi ruhande rw’umutwe wo gukonjesha.





Ububabare bwo ku ruhande: Buke canke bungana na Ra12.5.
Ubuzinguzingu: Buri munsi canke bungana na 0,3 mm.
Ingingo y’igiti: Iri munsi canke ingana na 0,2 mm/m.
Igipande cose c’igikoresho ni Hasi canke kingana na mm 1.





1. Urutonde rw'imiterere
Turagusavye urabe Umugereka wa 1 kugira ngo umenye vyinshi.

2. Ibikoresho bikenewe vyo gushiramwo ibikoresho vy’imashini.

3. Amakuru y'ubuhinga
Igitabo c'ubugenzuzi bw'imibare y'amashini n'umuyagankuba, icemeza igicuruzwa.





1. Ibisabwa mu gushiramwo ibikoresho, gukosora, gutozwa gukoresha, n'ibindi
Imbere y’ukwemera ibintu imbere y’uko birungikwa, uwubitanga ni we abazwa kwakira uruhande rw’abasaba no kurangiza igikorwa co kwemera imbere y’uko ibintu birungikwa. Ivyo bikoresho bizoshika aho hantu, kandi abakozi b’ivyo bikoresho bazoshika ku wubisaba mu misi 20 bamaze kwakira itangazo ry’ivyo bikoresho kugira ngo bashiremwo, bakosore, bongere bagerageze ico gikoresho c’imashini. Gushiramwo ibikoresho ni inshingano y’uwubitanga, na we azotanga ibikoresho vyiwe vyo gushiramwo n’ivyo kwubaka. Uwutanga ibikoresho azokurikiza amabwirizwa y’ishirahamwe mu gihe c’ugushiraho ibikoresho no kubungabunga igikorwa ca 5S ku kibanza mu gihe c’ubwubatsi. Gushiramwo no gukosora bizoheza mu misi 60. Inyuma yo gushiramwo no gukosora, hazokorwa igikorwa co kugerageza kandi kwemera bizokorwa hakurikijwe ingingo mfatirwako. Uwutanga ibikoresho azotanga inyigisho ku bakoresha n’abakozi b’ugusanasana b’umuguzi ku kibanza, zizomara imisi 7; Abakozi bamenyerejwe bazogira isuzuma ry’ivyiyumviro n’ibikorwa ritunganijwe hamwe n’impande zompi z’ugutanga n’ugusaba gushika bashitse ku bisabwa mu kazi.

2. Igihe co kwizera uburyo
Igihe co kumenya neza uburemere bw’ibikoresho ni amezi 12. Mu kiringo c’igarantiya, iyo hari ingorane z’uburyo canke ukudakora neza bitewe n’uguhingura neza ibikoresho canke ukubikora neza canke inshingano y’abandi babitanga, uwubikora ategerezwa guca asanura canke akabisubirira ku buntu kandi akabikosora neza.

3. Inyuma y'ugucuruza
Iyo ibikoresho bikora nabi mu kiringo c’igarantiya, uwubitanga ategerezwa kubisubiza neza mu masaha 4 amaze kwakira itangazo rivuye ku muguzi. Iyo uwugurisha akeneye kuja aho hantu kugira ngo akoreshe, uwugurisha ategerezwa gushika aho uwuguze ari mu masaha 48.

4. Gushiramwo ibikoresho
Gushiramwo ibikoresho bizofashwa n’abakoresha ibikoresho vy’imashini bo ku ruhande rw’abasaba, kandi abakoresha bazohabwa inyigisho z’umwuga ku bijanye n’imiterere n’ingingo ngenderwako z’imikorere y’ibikoresho vy’imashini, harimwo no gutorera umuti ingorane zoroheje, mu gihe co gushiramwo ibikoresho vy’imashini.





1. Igikoresho c’imashini kimaze imisi 3 gikora ubudasiba, gifise ubushobozi buhamye bw’ibikoresho be n’uburyo bw’ibicuruzwa buhuye n’ibisabwa mu vy’ubuhinga.

2. Ibice vyose vy’umuyagankuba bikoreshwa mu bikoresho bikozwe mu bikoresho vy’agaciro kanini kandi bikora neza.

3. Ivyo bikoresho bisaba ko bikora neza, bikagenzurwa neza, kandi ntihagire amavuta asohoka canke urusaku rudasanzwe.

4. Uwugurisha aratanga icemezo c’uko ibihimba vyose vy’igikoresho c’imashini ari bishasha.





1. Imibindi itatu (200 L/barrel) y’amavuta yo gusukura itegerezwa kugurwa ku muderi wagenwe n’umucuruzi mu gihe co kwemera.
2. Igerageza ry’ibikoresho (ibikoresho bifise ingero ziri mu rugero rw’ibikoresho vy’imashini)
3. Ibuye ry’amavuta ryo gutoza (uwuritanga atanga gusa ibuye ry’amavuta ryo gutoza kugira ngo umuguzi asuzume yongere agerageze igikoresho co gutoza).



Umugereka 1: Urutonde rw'imiterere
Urutonde n'ibivugwa ku miterere y'imashini yo hanze



Umubare w'urutonde	Izina	Ivyiyumviro	Ikirango
1	uwutwara	20000	LRT
2	umugozi	14.5 kW	Dench
3	Umushoferi wa moteri y'umugozi	14.5 kW	Dench
4	gufungura moteri	1 kW	Schneider
5	Gaburira umushoferi wa moteri	1 kW	Schneider
6	Moteri ihinduranya	4.8 kW	Schneider
7	Umushoferi w'imoteri	4.8 kW	Schneider
8	uburyo bwo kugenzura	KUKI-1	LRT
9	Gukora ku gicapo	Inci 15	Schneider
10	igitereko		NSK
11	gufatanya		Ubutaliyano
12	Ibihuza indege/ ibice vy'umuyagankuba		Schneider
13	Igitanda/ivyuma		Ikirundi
14	Uburyo bwo kuyungurura	centrifuge	Turbo-itandukanya
15	igariyamoshi	Umurongo w'uburongozi bubiri
17	Ibice vy'umuyagankuba		Schneider
18	ibice vy'umuyaga		TAC y'indege







Iciyumviro: Kubera igihe co gutanga amamoteri n’abashoferi bamwebamwe bava hanze, iyo ntunganyo iri hejuru ishobora kugira ico ikoze ku gihe co gutanga canke ntishobora gushika. Iyo bidashoboka gutanga canke kugira ico bikoze ku gutanga, uwukora n’uwusaba bazoganira kandi bavugane kugira ngo bafatanije guhitamwo ibindi bikoresho.





Gutera imbere hanze ni ubwoko bw’uguheza. Umutwe wo gutoza ukoreshwa mu kuyobora inyigisho y’ugusubira inyuma buhoro buhoro n’inyigisho y’uguzunguruka buhoro buhoro ku ruhande rw’igikoresho. Ibintu bitobito birakurwako kandi uburyo bwo ku ruhande buratera imbere biciye mu gusya no gusohora ivyuma bishaza n’ivyuma bikoreshwa. Imashini zo hanze zikoreshwa canecane mu guheza ibice vy'umubiri kugira ngo bibe vyiza cane kandi bibe vyiza cane





Igikoresho co gusya gica mu nzira iri hagati y’uruziga rwo gusya ruzunguruka rw’umuvuduko munini-n’aho igikoresho gikoreshwa. Ico gikoresho co gusya kirakata ata guca ku ruhande ibikoresho vy’igikoresho kugira ngo gikuremwo ibindi bikoresho kugira ngo gishobore gushitsa ibisabwa mu bijanye n’ingero n’imiterere. Ivyo gusya akenshi ni ugukata bikomeye. Igihuza uruziga rwo gusya n’igikoresho gikoreshwa kiratuma haba inguvu nyinshi zo gukata. Imashini yo gusya y'umubiri ni iya ibikoresho bikomeye-bifatanye vyo gukata





Ivyo bikoresho vyo hanze ni vyo vyiza cane mu gukora inkoni y’ipistoni y’icylindre kubera ko imashini zo hanze zishobora gutanga uburyo bwo hejuru cane, ukuri kw’ivy’ubuhinga n’ubushobozi bwo gutera amavuta, gutyo bikaba bituma cylindre ishobora gukingira neza kandi igakomera muri rusangi .





1:15 imyaka y'ubumenyi mu bushakashatsi no mu guhingura imashini zo gutoza
2: Honing imashini ikoresha porogaramu n'uburenganzira bwigenga bw'umutungo w'ubwenge
3:Imoteri n'ibice vy'umuyagankuba biva mu Buraya canke mu Buyapani
4:Ukwizigirwa kwemerwa n'isoko
5:Ikipe nziza cane
6:Ikipe nziza cane y'inyuma-y'ugucuruza





1:Kuva mu mwaka w’2010, umuhinga mu bijanye n’ugukora imashini yo gutoza ivyuma yemewe cane mw’isoko ry’Ubushinwa.
2:Dufise ikipe y'abahinga, bakiri bato, kandi bafise inshingano.
3:Turafise ikipe nziza cane y'abahinga. Turashima cane ivyo dukora.
4:Ukwizera uburyo! Imbere y’uko bishikirizwa umukiriya, igisata kijejwe kugenzura uburyo bw’ivyo bikoresho co mw’ihinguriro kiragenzura cane uburyo ivyo bikoresho.
5:Customize bidasanzwe honing imashini n'ibikoresho bivanye n'ivyo abakiriya bakeneye kugira honing ibice bidasanzwe.
